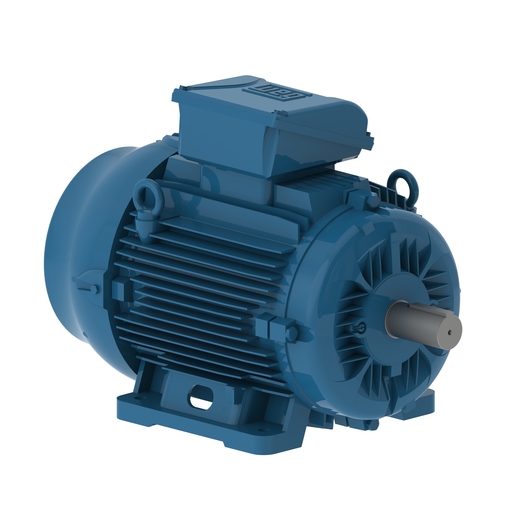

W22Xec IE3 30 kW 4P 200L 3Ph 380-400-415/660-690//460 V 50 Hz IC411 - TEFC - B3T
Product: 15442831
Le moteur W22Xec offre sécurité et fiabilité pour un fonctionnement dans une grande variété d'applications qui nécessitent un moteur à sécurité augmentée (Zone 2 - Ex ec IIC T3 Gc) avec protection par enveloppe (Zone 22 - Ex tc IIIB T125°C Dc). Il assure la sécurité et est conforme au niveau de rendement spécifié par la CEI 60034-30-1.
Il répond aux exigences des installations où le caractère inflammable de l'environnement n'est pas fréquent mais peut présenter des risques.
Product features
| Standard | IEC 60034-1 |
|---|---|
| Fréquence | 50 Hz |
| Tension d'alimentation | 380-400-415/660-690//460 V |
| Nombre de pôles | 4 |
| Degré de protection | IP55 |
| Vitesse de synchronisme | 1500 rpm |
| Output rating | 30 kW |
|---|---|
| Montage | Foot-mounted |
| Bride | Without |
| Montage | B3T |
| Boîte à bornes¹ | Top |
| Carcasse | IC411 - TEFC |
