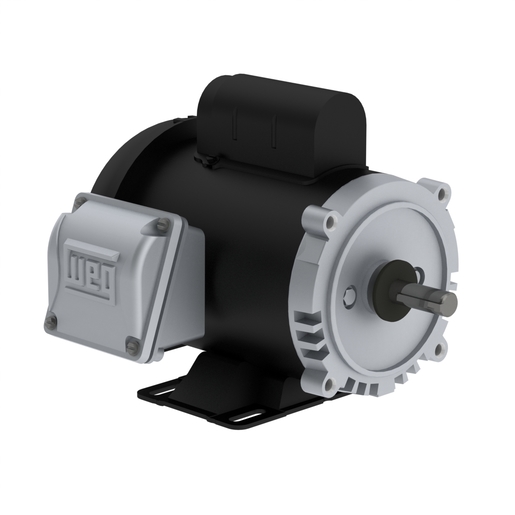

ROLLED STEEL 0.5 HP 2P W56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Catalog Number: .5036ES1BJPW56C-S | Product: 14419291
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and keyed shaft end, these versatile single-phase motors provide torque and durability for several applications.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 0.5 HP |
|---|---|
| Mounting | Foot-mounted |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
