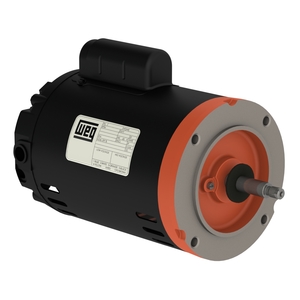

Comparing 5 products in 3 categories
| Frame Material | Rolled Steel | Cast Iron Cast Iron Cast Iron Cast Iron | Chapa de acero |
|---|---|---|---|
| Impregnation Method | Dip and Bake Polyester | Dip and Bake Polyester Dip and Bake Polyester Dip and Bake Polyester Dip and Bake Polyester | Imersión poliester |
| Shaft Material | SAE 1040/45 Carbon Steel | SAE 1040/45 Carbon Steel SAE 1040/45 Carbon Steel SAE 1040/45 Carbon Steel SAE 1040/45 Carbon Steel | Acero inoxidable AISI 304 |
| Painting | RAL 7022 207N (ISO 12944 - C2) | RAL 5009 203A (ISO 12944 - C3) RAL 5009 203A (ISO 12944 - C3) RAL 5009 203A (ISO 12944 - C3) RAL 5009 203A (ISO 12944 - C3) | Munsell N 1 - mate 207N (ISO 12944 - C2) |
| Grounding Lugs | Single | Single Single Single Single | Único |
| Tropicalized Painting | Without | Without Without Without Without | Sin |
| Frame | F56H | 200L 200L 200L 200L | W56J |
| Output | 2.2 kW (3 HP) | 37 kW (50 HP) 37 kW (50 HP) 37 kW (50 HP) 37 kW (50 HP) | 0.33 HP (0.25 kW) |
| Drip Cover | Without | Without Without Without Without | Sin |
| Frequency | 50 Hz | 50 Hz 50 Hz 50 Hz 60 Hz | 60 Hz |
| Rated speed | 2810 rpm | 2965 rpm 2970 rpm 2970 rpm 3575 rpm | 3445 rpm |
| Slip | 6.33 % | 1.17 % 1.00 % 1.00 % 0.69 % | 4.31 % |
| Rated voltage | 220/380 V | 380/660 V 400/690 V 415 V 460 V | 115/208-230 V |
| Rated current | 7.80/4.52 A | 69.8/40.2 A 67.8/39.3 A 67.0 A 60.9 A | 7.00/3.10-3.50 A |
| L. R. Amperes | 53.0/30.7 A | 530/305 A 543/315 A 569 A 542 A | 28.0/12.4-14.0 A |
| Overload protector (phenolic) | Without overload protector | Without overload protector Without overload protector Without overload protector Without overload protector | Automático |
| LRC | 6.8x(Code H) | - | 4.0x(Cód. L) |
| Connection Cables Quantity | 6 | 6 6 6 6 | - |
| No load current | 2.80/1.62 A | 24.0/13.8 A 27.0/15.7 A 29.5 A 26.0 A | 6.10/2.63-3.05 A |
| Fan material | Plastic | Plastic Plastic Plastic Plastic | Nylon |
| Rated torque | 0.763 kgfm | 12.2 kgfm 12.1 kgfm 12.1 kgfm 10.1 kgfm | 0.503 ft.lb |
| Locked rotor torque | 290 % | 300 % 330 % 360 % 380 % | 270 % |
| NDE bearing Seal | Without Bearing Seal | V'Ring V'Ring V'Ring V'Ring | Sin vedación |
| Breakdown torque | 260 % | 300 % 330 % 360 % 380 % | 270 % |
| DE bearing Seal | Without Bearing Seal | V'Ring V'Ring V'Ring V'Ring | Slinger |
| Locked rotor time | 10s (cold) 6s (hot) | 19s (cold) 11s (hot) 18s (cold) 10s (hot) 16s (cold) 9s (hot) 23s (cold) 13s (hot) | 10s (frío) 6s (caliente) |
| Moment of inertia (J) | 0.0023 kgm² | 0.2368 kgm² 0.2368 kgm² 0.2368 kgm² 0.2368 kgm² | 0.1471 sq.ft.lb |
| Design | A | N N N N | - |
| Insulation Class | B | F F F F | B |
| Service factor | 1.00 | 1.00 1.00 1.00 1.00 | - |
| Duty Cycle | Cont.(S1) | S1 S1 S1 S1 | Cont.(S1) |
| Starting Method | Direct On Line | Direct On Line Direct On Line Direct On Line Direct On Line | Partida directa |
| Ambient temperature | -20°C to +40°C | -20°C to +40°C -20°C to +40°C -20°C to +40°C -20°C to +40°C | -20°C hasta +40°C |
| Altitude | 1000 m.a.s.l. | 1000 m.a.s.l. 1000 m.a.s.l. 1000 m.a.s.l. 1000 m.a.s.l. | 1000 m |
| Degree of Protection | IP21 | IP55 IP55 IP55 IP55 | IP21 |
| Enclosure | IC01 - ODP | IC411 - TEFC IC411 - TEFC IC411 - TEFC IC411 - TEFC | IC01 - ODP |
| Mounting | F-1 | B3T B3T B3T B3T | F-1 |
| Rotation¹ | Both (CW and CCW) | Both (CW and CCW) Both (CW and CCW) Both (CW and CCW) Both (CW and CCW) | Anti-horário |
| Approx. weight³ | 17.5 kg | 256 kg 256 kg 256 kg 256 kg | 22.1 lb |
| Flange | Without | Without Without Without Without | FC 149 |
| Efficiency (100% load) | 82.5 | 93.7 93.7 93.7 93.0 | 48.3 |
| Power factor (100% load) | 0.91 | 0.86 0.84 0.82 0.82 | 0.62 |
| Bearing type | 6204 ZZ | 6312 ZZ C3 6312 ZZ C3 6312 ZZ C3 6312 ZZ C3 | 6203 2RS |
| NDE bearing | 6203 ZZ | 6212 ZZ C3 6212 ZZ C3 6212 ZZ C3 6212 ZZ C3 | 6202 2RS |
| Main terminal box hole | - | 2xM50x1,5 2xM50x1,5 2xM50x1,5 2xM50x1,5 | - |
| Shaft Locking Device | - | Without Without Without Without | - |
| Fan Cover material | - | Cast Iron Cast Iron Cast Iron Cast Iron | - |
| Winding thermal protection | - | Thermistor - 2 wires 1 per phase 155°C Thermistor - 2 wires 1 per phase 155°C Thermistor - 2 wires 1 per phase 155°C Thermistor - 2 wires 1 per phase 155°C | - |
| LRC | - | 7.6 8.0 8.5 8.9 | - |
| Screw cap | - | STAINLESS STEEL AISI 316L STAINLESS STEEL AISI 316L STAINLESS STEEL AISI 316L STAINLESS STEEL AISI 316L | - |
| Noise level² | - | 72.0 dB(A) 72.0 dB(A) 72.0 dB(A) 76.0 dB(A) | - |
| Punta de eje | - | - | Roscado |
| Factor de servicio | - | - | 1.75 (1.00 @ 208V) |
| Supply voltage | 24 Vdc |
|---|---|
| Processor (CPU) | IMX7 dual core @400MHz |
| Coprocessor | @200MHz |
| Scan cycle for 100K instruction | 16 ns/instruction and 1.60 ms total |
| Real time clock | Yes |
| RAM memory | 256 MB |
| Flash memory | 4 GB |
| Data memory | 4 MB |
| Code memory | 8 MB |
| Retentive memory | 64 kB |
| Persistent memory | 64 kB |
| Expansion cards limit | 8 |
| Programming software | CODESYS V3.5 SP19 or higher |
| Number of CPU total DI | 8 |
| DI type | PNP |
| Encoder input | Yes |
| Number of high-speed inputs | 4 |
| Number of total AI | Not applicable |
| Number of CPU total DO | 8 |
| DO type | Transistor (PNP) |
| Number of total AO | Not applicable |
| Communication interface 1 | 1 x RS485 |
| Communication interface 2 | 1 x Ethernet 10/100 |
| Communication interface 3 | 1 x CAN |
| Communication interface 4 | Not applicable |
| Communication interface 5 | 1 x USB device |
| Communication interface 6 | 1 x Micro SD card |
| Communication protocol 1 | Modbus TCP server |
| Communication protocol 2 | Modbus TCP client |
| Communication protocol 3 | Modbus RTU master |
| Communication protocol 4 | Modbus RTU slave |
| Communication protocol 5 | Canopen master |
| Communication protocol 7 | Ethernet/IP scanner |
| Communication protocol 8 | Ethernet/IP adapter |
| Communication protocol 9 | Ethercat master |
| Communication protocol 13 | Profinet controller |
| Communication protocol 14 | Profinet device |
| Communication protocol 15 | MQTT Publisher |
| Communication protocol 16 | MQTT Subscriber |
| Height | 131.7 mm |
| Width | 101.7 mm |
| Depth | 99 mm |
| Weight | 0.350 kg |
| Mounting position | DIN rail |
| Mouting type | DIN rail or screwed |
| Certification | CE, UL and RCM |
| Power supply | 200 up to 240 V |
|---|---|
| Input phases | Three-phase |
| Configuration | With options |
| Rated current (HD) | 16 |
| RFI filter | With filter (C3 category) |
| Enclosure | IP20 |
| Dynamic braking | Yes |
| Control method - induction motor | Scalar, VVW, Vector with and without encoder |
| Rated efficiency | ≥ 97% |
| Link Inductor | Yes |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | -10 °C a 50 °C |
| USB port | Yes, available in HMI |
| Memory card | MicroSD (card not included) |
| I/O standard | 6 x DI; 2 relés NA; 1 relé NA/NF x DO; 2 x AI; 2 x AO. |
| Safety Stop | Functional safety |
| Display | Graphic LCD |
