Comparing 2 products in 2 categories
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Vacuum Pressure Impregnation (VPI) |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | M63x1,5 |
| Accessories Terminal Box | With |
| Shaft Locking Device | Without |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C3) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Frame | 315L |
| Winding thermal protection | Thermistor - 2 wires 1 per phase 155°C |
| Output | 150 kW (200 HP) |
| Drip Cover | Without |
| Frequency | 60 Hz |
| Rated speed | 1786 rpm |
| Slip | 0.78 % |
| Rated voltage | 3300 V |
| Rated current | 33.3 A |
| L. R. Amperes | 226 A |
| LRC | 6.8 |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 3 |
| No load current | 12.5 A |
| Fan material | Plastic |
| Rated torque | 592 ft.lb |
| Screw cap | STAINLESS STEEL AISI 316L |
| Locked rotor torque | 160 % |
| NDE bearing Seal | WSeal |
| Breakdown torque | 229 % |
| DE bearing Seal | WSeal |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 87.8 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.00 |
| Starting Method | Direct On Line |
| Duty Cycle | S1 |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(D) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 79.0 dB(A) |
| Approx. weight³ | 2646 lb |
| Flange | Without |
| Efficiency (100% load) | 93.8 |
| Power factor (100% load) | 0.84 |
| Bearing type | 6319 C3 |
| NDE bearing | 6316 C3 |

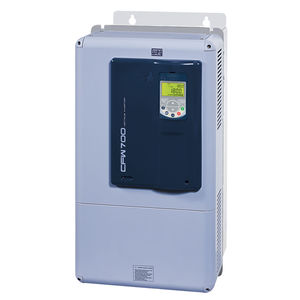

| Tensão nominal de entrada | 220-230V |
|---|---|
| Número de Fases de entrada | Trifásico |
| Configuração | Básica |
| Corrente nominal (ND) | 180 |
| Corrente nominal (HD) | 142 |
| Filtro RFI | Com filtro (categoria C3) |
| Grau de proteção | IP20 |
| Frenagem reostática | Standard sem frenagem |
| Métodos de Controle - motor de indução | V/f, VVW, Sensorless e Encoder |
| Rendimento típico na condição nominal | ≥ 97% |
| Indutor do Link | Sim |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Sim, incorporado |
| Temperatura | -10 °C a 45 °C |
| Porta USB | Sim, inclusa na HMI |
| Cartão de memória | Não incluso no produto |
| E/S padrão | 8 x DI; 1 relé NA/NF e 4 transistores x DO; 2 x AI; 2 x AO. |
| Parada de segurança | Não |
| Display | LCD Gráfico |
| Alimentação da eletronica | Interna |
