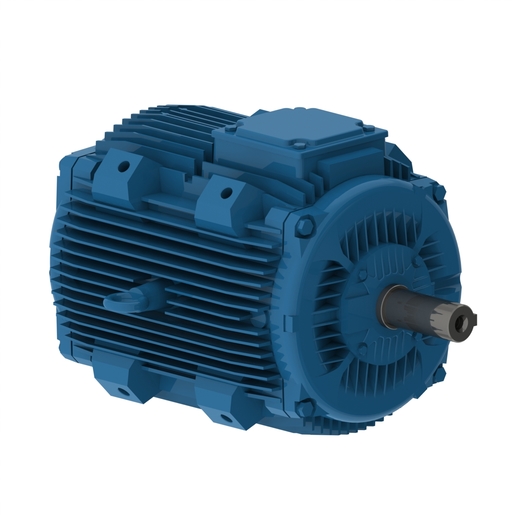

W22 Fan and Exhaust IE3 75 kW 4P 250S/M 3Ph 380-400-415/660-690//460 V 50 Hz IC418 - TEAO - B30T
Product: 14666324
Specially designed for manufacturers of axial fans, the Fan and Exhaust motors are compact and an excellent choice for the following applications:
- Fans and exhausters
- Tunnels
- Subways
- Air Conditioning Systems
- Underground coal mines
- Shopping malls
- Supermarkets
- Other applications
They feature cast iron frame, with flexible mount, and comply with the efficiency level according to IEC 60034-30-1.
Product features
| Standard | IEC 60034-1 |
|---|---|
| Frequency | 50 Hz |
| Voltage | 380-400-415/660-690//460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1500 rpm |
| Output rating | 75 kW |
|---|---|
| Mounting | Pad mounted |
| Flange | Without |
| Mounting | B30T |
| Terminal box¹ | Top |
| Enclosure | IC418 - TEAO |
Configure
