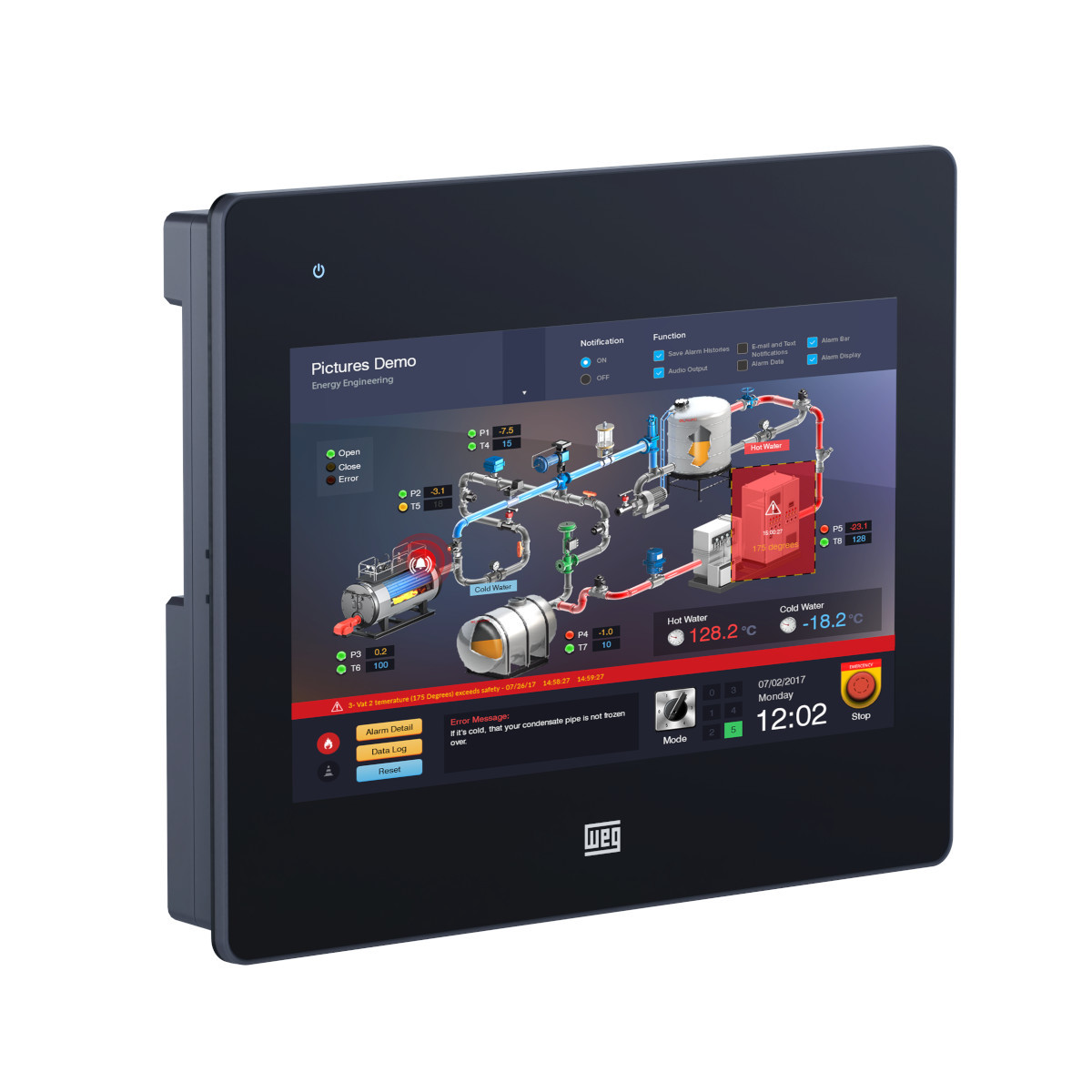

WEG's cMTx Series Operation Interfaces are designed to meet the most diverse automation processes and at different scales of complexity. Available in 7”, 10.1” and 15.6” versions, its objective is to make the automation of complex production processes more flexible and objective, facilitating the integration between man and machine.
Product features
| Interface Type | Touch Screen |
|---|---|
| Display size | 10,1" 1024x600 - TFT |
| Supply voltage | 24 Vdc |
|---|
产品详情
| Display size | 10,1" 1024x600 - TFT |
|---|---|
| Display Type | Resistive |
| Display Collor | Color |
| Screen Useful Life | > 30000 hours |
| Communication Port | Ethernet + RS232 + RS485 + USB Host |
| CAN Bus | No |
| WiFi Support | Yes |
| MQTT | Yes |
| Mouting | On panel |
|---|---|
| Degree of Protection | UL TYPE 4X / NEMA4 / IP66 |
| Dimensions | 271 x 213 x 38 mm / 10.67 x 8.38 x 1.49 in |
| Panel cutout | 260 x 202 mm / 10.23 x 7.95 in |
| Weigth | 0.600 kg |
| Easyaccess | Optional |
| Codesys | Does not support |
Technology
The new WEG Operator Interfaces come bringing the latest in image quality, processing, and cloud integration. With Quad-Core processors and 4GB RAM memory, your applications are faster and much more robust.
Transform your HMI cMTx in a Programmable Logic Controller (PLC) from an activation card, and develop your solution in CODESYS® , one of the most recognized PLC programming platforms in the world.
cMTX Line
To meet the global demand for greater integration and management of machines and processes, WEG developed the IoT solution WEG SMART MACHINE (WSM). WSM is a cloud-based IoT solution dedicated to monitoring machines in real time and from anywhere. Applications are custom-built to meet the specific needs of each application and machine type. WSM brings pioneering innovation to OEMs, making it easy to service and improve the performance of their machines. For End Users, an impressive tool with information that facilitates production, process and maintenance management.
Main features
- Available sizes: 7", 10.1" and 15.6";
- Capacitive screen for 15.6" models;
- Built-in PLC activation through CODESYS® activation card;
- Remote access to HMI through EasyAccess 2.0 activation card;
- MQTT protocol;
- Multi-gesture screen;
- 4GB RAM memory
- 1GB Flash memory;
- WiFi connection module support;
- Modbus RTU and TCP, CANopen, OPC UA and SAE J1939.
Increase your productivity and process control with the cMT-FHDX-820. This device has the ability to connect to various industrial communication networks and transmit its image through an HDMI® output.
- 35mm DIN rail mounting
- Full HD 1080 pixels image with HDMI® output
- Built-in PLC activation through CODESYS® activation card;
- Remote access to HMI through EasyAccess 2.0 activation card;
- USB 2.0 port;
- 4GB RAM memory;
- 1GB Flash memory;
- Ethernet connection with two ports: 1 x 10/100/1000 Base-T + 1 x 10/100 Base-T.
