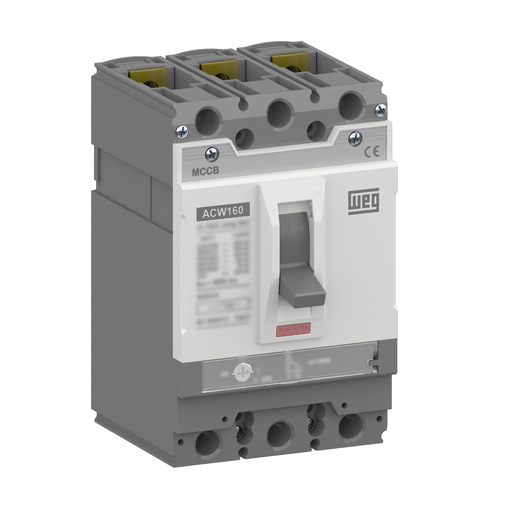

CIRCUIT BREAKER ACW160H-FMU160-3 160A 3 Poles 85kA @ 380Va.c.(IEC 60947-2) Adjustable thermal and fixed magnetic
Product: 11111221
Molded case circuit breakers from the ACW line are devices designed for the protection of electrical circuits, switching, and motor protection. They are available in different sizes with currents ranging from 20 to 1600 A up to 690 VAC, or special versions for applications between 690 VAC and 1000 VAC.
With a modern, compact, and robust design, they are suitable for applications with high interruption capacity of up to 150kA at 380/415 VAC, advanced accessories, and electronic trip unit options.
Product features
| Reference | ACW160 |
|---|---|
| Rated current | 160 A |
| Breaking capacity | 85kA @ 380Va.c.(IEC 60947-2) |
| Trip unity | Adjustable thermal and fixed magnetic |
| Type of terminal | Unspecified |
|---|---|
| Number of poles | 3 Poles |
| Certification | CE |
